- If damaged it must be replaced. A range of Venturi meters spanning three diameter ratios and three inlet convergent angles was evaluated across a comprehensive range of multiphase flow conditions in the multiphase flow measurement facility at NEL.

An Introduction To Venturi Flow Meters Flow Nozzles And Segmental Wedge Elements

Open the air valve atop the manometer bank and adjust the flow control valve andor the air valve to develop a difference of at least 100 mm of head between manometers A and D.

. The device was invented by Clemens Herschel in 1819 and is named in honour of Italian physicist Giovanni Venturi 1746-1822. The venturi meter experiment is initiated by closing the valves on the hydraulic bench turning on the pump and slowly opening them to ensure that water is flowing. Because of the continuity condition the velocity of the flow.

The pressure difference caused by the. The venturi flow meters can be stored indefinitely indoors in a clean non-corrosive environment. To a diameter of d 16mm.

The venturi tube has a converging conical inlet a cylindrical throat and a diverging recovery cone. Venturi Meter is a device in which pressure energy is converted into kinetic energy and it is used for measuring the rate of flow of liquid through pipes. Venturi meter is a measuring or also considered as a meter device that is usually used to measure the flow of a fluid in the pipeA Venturi meter may also be used to increase the velocity of any type fluid in a pipe at any particular point.

The straight runs shown. Procedure Let us first define the Venturi Meter and the way it works in order to proceed in the experiment. A venturi tube contains a throat which is smaller in a diameter to the pipeline into which it fits.

If environment is not clean meters must be covered. Through the pipe by measuring the pressure difference between. However with the additional downstream pressure tap three flow equations can be produced.

Venturi meter is a flow measurement device which is based on the principle of Bernoullis equation. Now the well established performance characteristics of the world-class HVT-Halmi Venturi meter for cylindrical lines has been adapted scientifically to the unique demands imposed by rectangular flow measurement applications. Used in the Medical industry like measuring the flow rate of blood in arteries.

- Handle it from its outside. Up to 24 cash back Energy Losses Through Venturi Orifice and Rotameter Flowmeters. By employing the continuity equation and Bernoullis principle the volumetric flow rate through the orifice meter can be calculated as described previously for venturi meter.

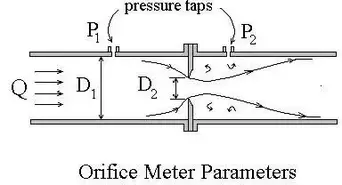

Meters must not be stacked. Figure 2 shows an orifice meter with the variable position of vena contracta with respect to the orifice plate. C rough welded sheet.

- Install meter in the pipe line so that the Flow Directional Arrow agrees with the direction of the. - This is a high quality flow meter. Which are typical of rectangular flow venturi meters made by competitors.

Meters should be stored away from high traffic areas in order to minimize damage risk. The Venturi meters were evaluated in an uninterrupted 4-inch horizontal pipe run without any mixing. A Venturi meter is an invasive full bore flow measurement device that employs a combination of the conservation of mass and energy to determine the flowrate of internal flows in within pipes.

Fluid mechanics H 40 b Ven t u r i F l ow M e t e r Venturi flow meter for use with the Flow. It basically works on the principle of Bernoullis Theorem. Hence 3 8 6 5 6 ¼ À Ì.

Annubar Straight Run Requirements 1 Upstream inlet side Annubar products 3051SFC_A 3051CFC_A 2051CFC_A 3051SFA 3051CFA 2051CFA 485 405A 585 2. Traditionally this is the only Venturi meter flow rate calculation. The restriction diameter should not be less than 0224 D and not more than 0742 D where D is the nominal bore diameter of the pipe.

- If improperly installed it must be reinstalled. Inside the flow bench a tank is connected to one end of a lever arm. It works on the basic principle of Bernoullis Equation.

It can also be used for measuring flow rates Discharge at several places such as gases water suspended solids slurries and dirty liquids. Insert-Type Venturi Flow Meters Indoor Storage. It has no projections into the fluid no sharp corners and no sudden changes in.

Venturi meter that is used to measure the flow of the water. - Do not damage its inside. Venturi flow meters offer high accuracy and reliability for flow measurement of pressurized line fluids including liquids gases and steam as well as high-viscosity line fluids solids-bearing line fluids and harsh or contaminated line fluids.

Section of the pipe varies linearly from a diameter of D 26mm. Venturi Meter1 Water Supply Flow meter Stop watch Calculator B. Two sections of the pipe.

Part of ISO 5167 is not applicable to the measurement of pulsating flow. Venturi Multiphase Flow Measurement based Active Slug Control Somtochukwu Godfrey Nnabuife1 James Whidborne2 Liyun Lao1 Yi Cao3 1 School of Water Energy and Environment Cranfield University Cranfield United Kingdom 2 School of Aerospace Transport and Manufacturing Cranfield University Cranfield United Kingdom 3 College of Chemical and. The venturi meter is a flow meter that used where high-pressure recovery is required.

View H40b_Venturi-Flow-Meter-Datasheetpdf from MECHANICAL MECHANICAL at Universidad Nacional de Colombia. FLOW METER FLOW METER FLOW METER Orifi ceNozzle Beta 05 Up 6 11 26 Down 3 3 3 Beta 07 Up 10 15 38 Down 4 4 4 Venturi Beta 05 Up 5 7 7 Down 2 2 2 Beta 07 Up 9 26 26 Down 4 4 4 Vortex Up 25 25 30 Down 5 5 5 Thermal Up 15 15 40 Down 5 5 5 Turbine Up 10 10 10 Down 5 5 5 Annubar Up 8 9 24 Down 3 3 4 Note. Flow through Venturi meter Background and Theory Introduction Flow meters are used in the industry to measure the volumetric flow rate of fluids.

This part of ISO 5167 deals with the three types of classical Venturi tubes. That is the recovered DP can be used to find the flow rate with an expansion flow equation see. In this particular experiment the cross-.

The Proper Method of Installing a Venturi Meter 2 Caution. At the end of this experiment students should be able to determine the coefficient of discharge of given venturi meter. Extensive research conducted on the.

HEAD FLOW METERS Flow Detectors Venturi Tube The venturi tube illustrated in Figure 3 is the most accurate flow-sensing element when properly calibrated. The apparatus consists of a flow bench from where water can flow to the venture meter. It is invented by American Engineer Clemans Herchel and named by the Italian physicist Giovanni Venturi.

2 HOURS 10 Experiment Outcomes. Differential pressure type flow meters Head flow metersmeasure flow rate by introducing a constriction in the flow. The traditional Venturi meter flow rate equation is shown here as equation 2.

It does not cover the use of Venturi tubes in pipes sized less than 50 mm or more than 1 200 mm or where the pipe Reynolds numbers are below 2 105. DJJ20073 FLUID MECHANICS EXPERIMENT. When the fluid flows through it the pressure at the throat is lower than the upstream.
